4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension

Product Categories

Guangzhou Guomat Air Spring Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension

Name: 4 12quot1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM31041 Air Suspension
Brand: AIRSUSTECH
Price: 1 USD

Wholesale 4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension from china suppliers

Brand Name : AIRSUSTECH

Model Number : 1B4.5×1P

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Plate Diameter : 110 MM

Space Required : 140 MM

Material : Rubber and Steel

Parker : 9109400

Total Stroke : 45 MM

Working Temperature : -40℃+70℃

Contact Now

4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension

Quick Details

Part Number	1B4.5×1P
Quality	100% Tested
Manufacturer Warranty	12 Months
Pressure Ability	0.1MPa...0.7MPa
Condition	Brand New
Standard	OEM Standard

Product Features

[1] Maximum Diameter: 125mm
[2] Space Required: 140mm
[3] Minimum Height: 45mm
[4] Maximum Height: 90mm
[5] Total Stroke: 45mm
[6] Static Height: 65mm
[7] Effective Area at Static Height: 65cm²
[8] Bellows Weight: 1 kg

OEM Part Numbers

Dunlop Pneuride Air Actuator 4 1/2"x1

Dunlop Pneuride Air Actuator 4 1/2x1

Dunlop Pneuride Air Actuator 4 1/2'x1

Firestone Air Bag W01-R58-4050 / WO1-R58-4050

Firestone Air Bag W01R584050 / WO1R584050

Firestone Air Bag W01 R58 4050 / WO1 R58 4050

Dunlop Springride Air Spring SP2334

Dunlop Springride Air Spring SP 2334

Dunlop Springride Air Spring SP 23 34

Continental Contitech FS 44-5 DI / FS44-5 DI

Continental Contitech FS 445 DI / FS445 DI

Continental Contitech FS 44 5 DI / FS44 5 DI

Norgren Air Suspension PM/31041

Norgren Air Suspension PM31041

Norgren Air Suspension PM 31041

Parker Air Spring Assembly 9109400

How Do Industrial Air Springs Work?

A rubber air spring is a shock-absorbing device that combines the elasticity of rubber with the compression of air. It is widely used in automotive suspension systems, construction machinery, and medical equipment. Its simple structure consists of rubber filled with air. The air is compressed and deformed to absorb and release energy, providing both cushioning and support.
When an external force acts on the air spring, the rubber wall deforms, compressing the air and storing energy. When the force disappears, the air expands, and the rubber returns to its original shape, releasing the energy. This dynamic process enables the air spring to effectively absorb shock and provide a comfortable ride.
The advantages of rubber air springs include adjustable volume, rapid response, and durability. They automatically adjust their height based on the load, adapting to varying road conditions in real time, reducing the harsh impact of traditional springs. Because both rubber and air are resistant to wear, maintenance is low and the service life is long.
This highly efficient shock-absorbing technology not only improves vehicle comfort and handling but also demonstrates significant value in multiple fields, making it an indispensable component in modern engineering.

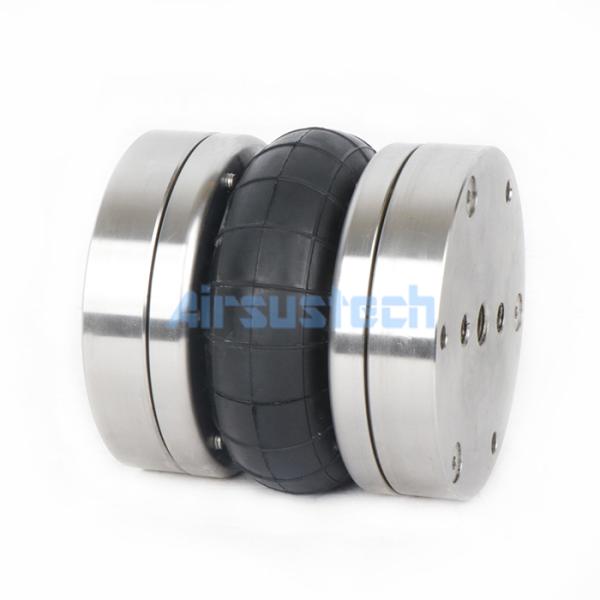

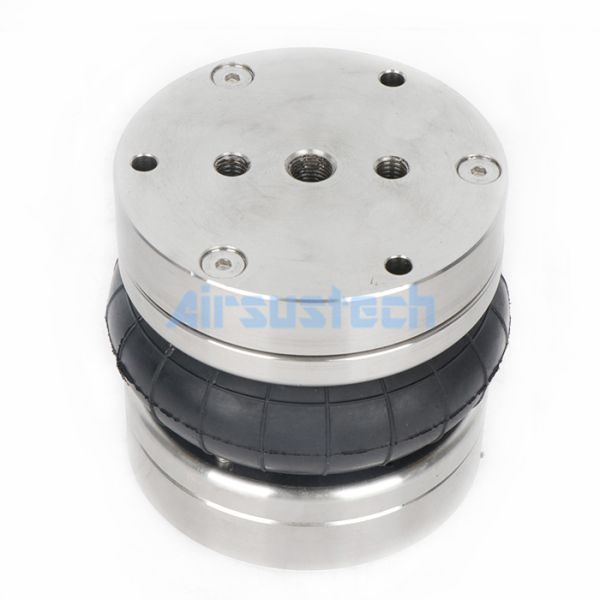

The Real Pictures of 1B4.5×1P

4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension

Factory Workshop

Product Tags:

Dunlop Pneumatic Air Rubber Bellows

Cross Norgren Pneumatic Air Rubber Bellows

PM/31041 Air Rubber Bellows

4 1/2"×1 Dunlop Pneumatic Air Rubber Bellows Cross Norgren PM/31041 Air Suspension Images
